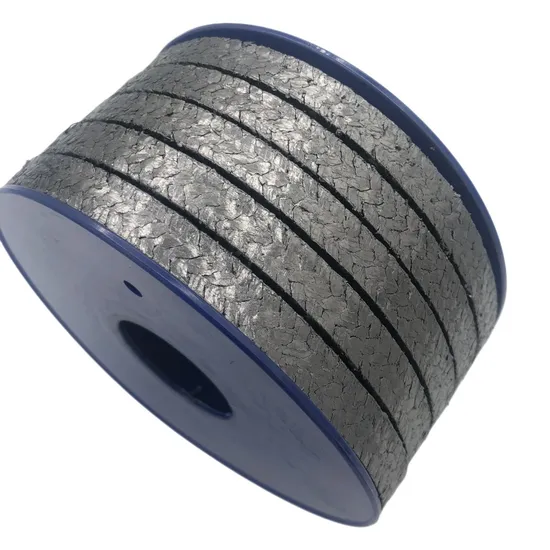

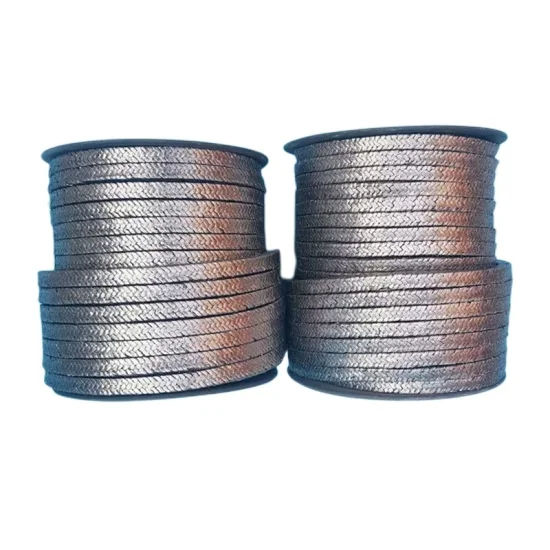

High-performance expanded graphite packing for sealing valves, pumps, and reactors in high-temperature, high-pressure environments.
Constructed from pure expanded graphite yarn reinforced with metallic wire for superior strength and extrusion resistance.
Offers exceptional thermal stability, operating effectively in temperatures from -240°C up to 650°C in steam applications.
Engineered for high-pressure applications, capable of sealing up to 450 Bar in static conditions and 200 Bar on rotating equipment.
Chemically inert across a full pH range of 0-14, making it ideal for aggressive media including acids, alkalis, and solvents.
Features a low coefficient of friction, which minimizes shaft wear and reduces operational torque, extending equipment service life.
Operating Temperature: -240°C to +650°C (Steam)
Maximum Pressure: 450 Bar (Static), 200 Bar (Rotating)
pH Range: 0-14
Shaft Speed: Up to 25 m/s
Density: Approx. 1.1 g/cm³
Construction: Expanded Graphite Yarn with Metallic Wire Reinforcement
